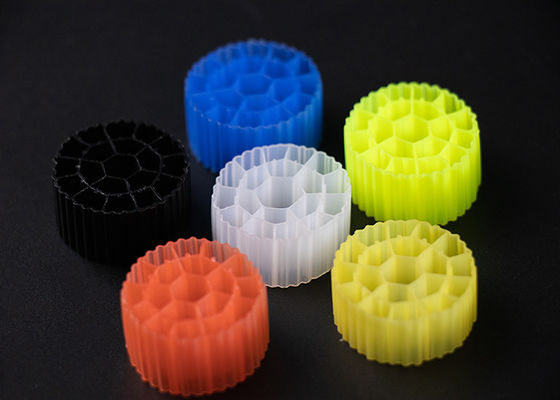

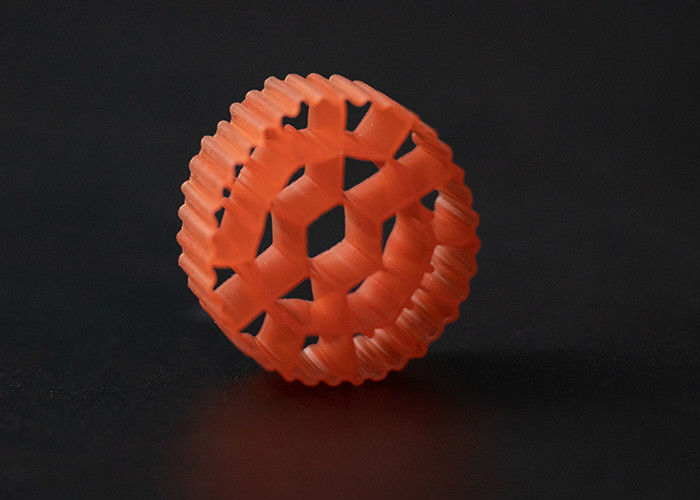

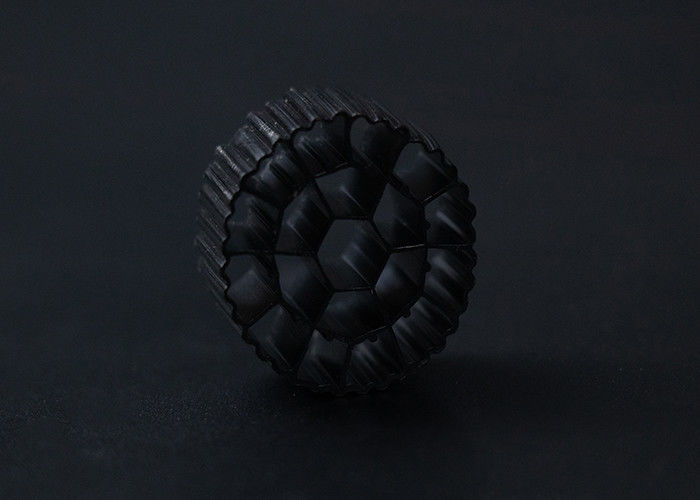

처녀 HDPE FDA 세이프티 물질 생체 필터 미디어 IFAS 기술

biotube IFAS technology FDA safty material large surface area high effiency MBBR bio filter media

Biotube IFAS technology large surface area effiency MBBR bio filter media



Small Boss MBBR Filter Media ITEM

Item	PE01	PE02	PE03	PE05	PE06	PE07	PE08	PE09	PE10
Size diameter*length(mm)	12*9	11*7	10*7	25*10	25*10	35*18	5*10	15*15	25*4
Density(g/cm3)	0.96-0.98
0Surface ares (m2/m3)	>800	>900	>1000	>600	>600	>350	>3500	>900	>1200



















What is the process for this MBBR system? MBBR has two steps: it removes the ammonia with slow growing bacteria that work well in the plastic media carriers. The bacteria convert the ammonia to nitrate in an aerobic zone then the water moves to an anoxic zone where glycerine is added for bacteria to convert the nitrate to nitrogen gas that bubbles out of the water. The system has an alkalinity dosing system that adjusts the pH and alkalinity if the nitrifying bacteria are alkalinity-limited.

Small Boss MBBR Filter Media Advantage:

• Rapid carrier bio film formation mechanism
• Super decarburization, ammonia nitrogen removal capacity
• Excellent resistance to shock load performance
• Flexible way of engineering application
• Simple operation and maintenance
• Long service life-100% virgin HDPE material.
• Deoxidation and phosphorus removal effect is good



MBBR Technology and Biofilm Carries:
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:

+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

+ As a high loading system in front of existing biological treatment - roughing reactor

+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

+ To implement post-treatment to existing plants for process improvements


Small Boss MBBR Filter Media Application



The Sewage plant upgrade project , improve the standard and quantity



New sewage treatment project of MBBR and Biological Aerated Filter process



Biochemical treatment of reclaimed water



River regulation denitrification and phosphorus removal.



Aquaculture in addition to ammonia nitrogen, water purification



Biological filter media is used for biological deodorization tower





Small Boss MBBR Filter Media Advantage



Rapid carrier bio film formation mechanism



Super decarburization, ammonia nitrogen removal capacity



Excellent resistance to shock load performance



Flexible way of engineering application



Simple operation and maintenance



Long service life-100% virgin HDPE material.



Deoxidation and phosphorus removal effect is good



Small Boss MBBR Filter Media Application



The Sewage plant upgrade project , improve the standard and quantity



New sewage treatment project of MBBR and Biological Aerated Filter process



Biochemical treatment of reclaimed water



River regulation denitrification and phosphorus removal.



Aquaculture in addition to ammonia nitrogen, water purification



Biological filter media is used for biological deodorization tower



Small Boss MBBR Filter Media Package:

0.1m3/woven bag; 1m3/woven bag;1m3/carton .

20ft container could load 30m3. 40HC container load 70m3
